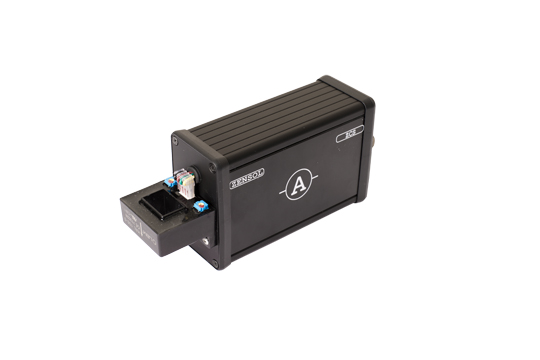

CURRENT TRANSDUCER 100/200/600 AMPS – ZCS-100/200/600

Ref : ZCS-100 / ZCS-200 / ZCS-600

The ZCS-100/200/600 current transducers are designed to measure AC, DC, and impulse currents during circuit breaker opening and closing operations. Based on Hall Effect technology, they provide galvanic isolation between the primary and secondary circuits while measuring currents up to 100, 200, or 600 A depending on the model.

The transducers provide high accuracy of ±0.2%, very good linearity below 0.1%, low temperature drift, and high bandwidth, making them suitable for capturing dynamic current signals during circuit breaker testing and diagnostics.

Available in three current ratings, the ZCS range allows the appropriate transducer to be selected according to the current being measured. The units are designed for use with Zensol CBA, CBV, and CB11 instruments.

KEY BENEFITS

  • AC, DC, and impulse current measurement
  • Available in 100 A, 200 A, and 600 A versions
  • Hall Effect technology
  • Galvanic isolation between primary and secondary circuits
  • Accuracy: ±0.2%
  • Linearity: <0.1%
  • Low temperature drift
  • High bandwidth
  • Designed for circuit breaker opening and closing measurements
  • Compatible with Zensol CBA, CBV, and CB11 instruments
