Recloser Control Analyzer – GEN-12

Ref : GEN-12

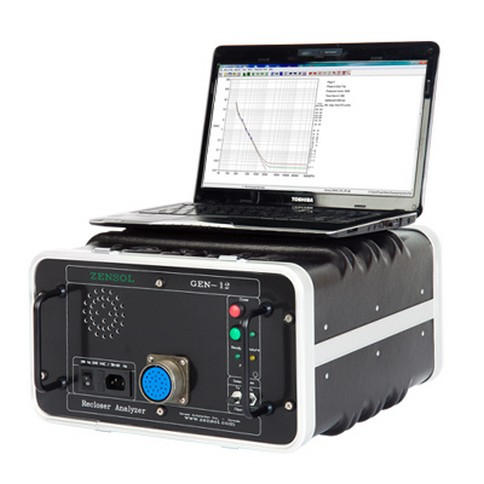

The GEN-12 is a universal analyzer for Recloser Controls and a Recloser Simulator of up to 12 Amps. It performs a complete range of testing and provides high precision curves in no more than 10 minutes.

We conceived the GEN-12 to perform up to 30 different tests such as Trip, Reclose, Reset or Cold Load Pickup, in the easiest possible way with our “Plug & Play” solution: plug your GEN-12 with the cable specific to your recloser and play the GEN-WIN software for fully automatized tests.

The GEN-12 is universal and built to work on any type of devices such as Cooper, ABB, Westinghouse, Schneider, Arteche, Panacea, GE, W&B, G&W… with a specialized interface connecting the devices.

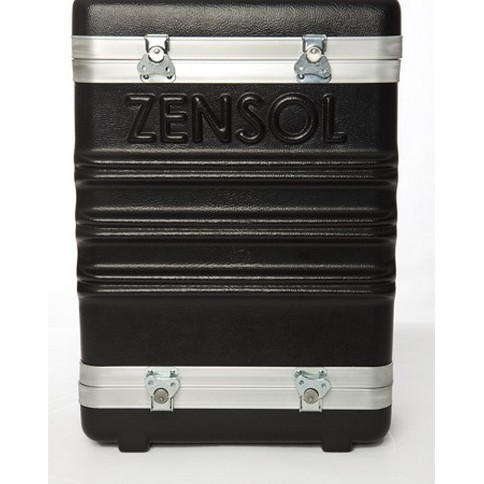

We also pay strong attention to the high quality of our products so that they can resist impacts and extreme conditions (-20°C to 70°C) with a life expectancy better than 15 years.

GEN-WIN Software

The GEN WIN software is an all-in-one software performing the complete range of testing. All results are automatically analyzed and compiled in protection curves. Excel reports are available in a single click.


  • Plug & Play : Plug your instrument and play the software
  • Recloser Control diagnosis in less than 10 minutes
  • Universal Control Recloser analyzer for any type of devices
  • Fully automatized diagnosis (GEN WIN software)
  • 2 Years guarantee
  • Sampling time : 44 μs to 28 ms
  • Sampling rate : 35.7 Hz – 22 727 Hz
  • Recording time : 1 μs to 100 min
  • Resolution : 1 μs
  • Accurency : ±1 LSB
  • Signal to noise ratio : Better than 80 dB
  • Graphic representation resolution : Unlimited software zoom
