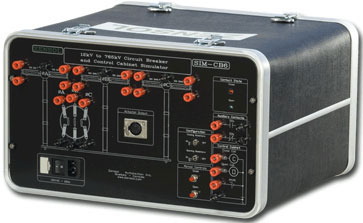

Circuit Breaker and Control Cabinet Simulator - SIM-CB6

Improve your expertise on circuit breaker analyzers and verify their functionality before going on the field!

The SIM-CB6 enables you to simulate any type of circuit breaker (SF6, Air Blast, Oil, etc...) up to 6 contacts (2 contacts per phase), with or without closing/opening resistor contacts, and control cabinets.

The SIM-CB6 comes with a user-friendly software, Sim-Win, that allows to modify timing and motion parameters easily, such as:

• opening and closing time of the main, resistive and auxiliary contacts;
• different real contact displacement curves.

The SIM-CB6 maintains the competency of the operators on circuit breaker analyzer systems. Before going on the field, one can get familiar with any circuit breaker analyzer, such as our CBA-32P, and verify its functionality by using the SIM-CB6.

The SIM-CB6 is used by major utilities, like Hydro-Québec and Manitoba-Hydro, where it is considered as an essential tool for maintenance training.

• Compact
• Sturdy
• Lightweight and easy to carry
• Easy to use, a special and supplementary training is not required.

• Software to change the opening time, the closing time and the displacement curves
• Simulation of a circuit breaker up to 6 contacts (2 contacts per phase)
• Simulation of auxiliary contacts 52a and 52b
• Simulation of any circuit breaker with or without closing and opening insertion resistance.
• Manual selection of the insertion resistance: 30, 500, 2400, 4000 Ohms
• Manual controls: close – open
• Visual contact status
