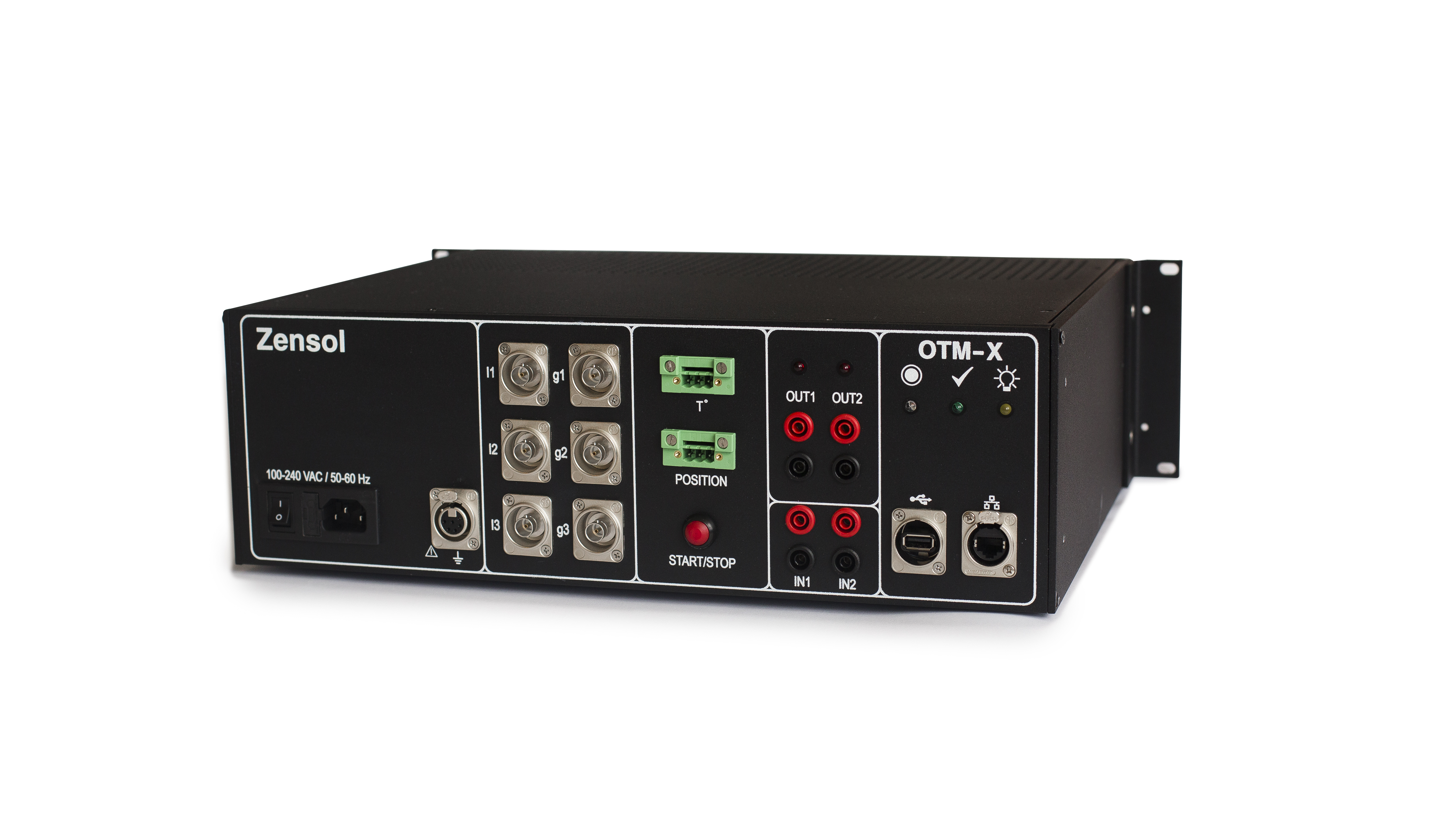

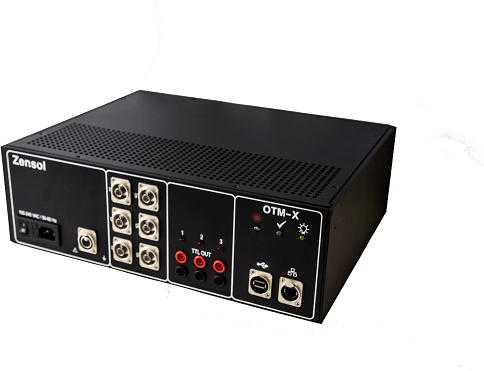

Standalone OLTC Event Recorder – OTM-X

Ref : OTM-X

The OTM-X is the only standalone recorder using the vibro-acoustic method and motor current testing to detect ONLINE your On-Load Tap Changer’s (OLTC) malfunctions.

Thanks to its technology, it can detect problems such as contact wear, arcing in diverter, arcing in selector, synchronism problem, drive mechanism problem, brake failure etc.
The OTM-X is a special machine, combining a powerful Zensol measurement instrument with a flexible and autonomous computer running the tests.
This combination allows the instrument to be continuously connected to the network. A remote user can thus access data and test plans from anywhere at any time.

The OTM-X can be installed in the OLTC’s control cabinet or in the substation’s premises, for any period of time. No need for an operator to run the tests, the OTM-X is capable of recording unlimited OLTC operations.

We also pay strong attention to the high quality of our products so that they can resist impacts and extreme conditions (-20°C to 70°C) with a life expectancy that exceeds 15 years.

OpenZen Software

OpenZen is an-all-in-one software that includes all the necessary tools for testing, processing, calculations, analysis and interpretation of results in the field.

BROCHURE

KEY FEATURES

    • Autonomous instrument
    • Vibro-acoustic test with high sampling rate (100KHz)
    • Can be used on any type of OLTC or other mechanical equipment
    • Multi-test recorder with 64GB of local storage
    • 2 years guarantee
Technical description
  • Sampling time: 10 µs to 26 ms
  • Sampling rate: 38Hz to 100KHz
  • Recording time per test: 10 milliseconds to 30 minutes
  • Analog A/D conversion: 16 bits
  • Local storage : 64GB
  • Command Outputs: 3
  • Vibration (Accelerometers) Inputs: 3
  • Multipurpose Analog Inputs (16 bits): 3
Accessories

Included with the instrument:

  • OpenZen-OTMX© Software
  • Complete set of manuals
  • Calibration certificate and test reports
  • 1 day training at Zensol’s premises (travel expenses of the attendees not included)
Sharing Knowledge
Customer Downloads
Quick Setup Guide – OTM-X

Learn how to setup your OTM-X



Job aid – OTM-X

Set your OTM-X step by step



If you don’t have the password, please contact us.
