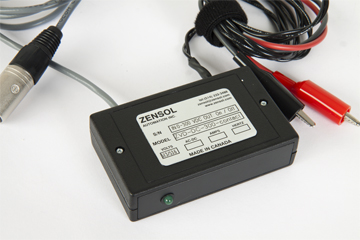

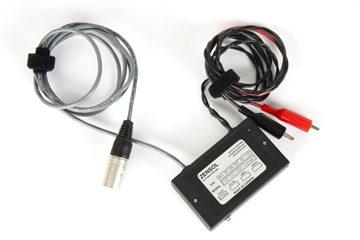

DC Voltage Detector - Contact - ZVD-DC-300-Contact
Designed to detect the presence of a DC voltage, this module is very useful to quickly detect possible power supply problems with your circuit breakers.
It will allow you to quickly and easily visualize the voltages found in the control cabinets of your circuit breakers.
Connected to one of the contact inputs of your CBA 32P, you will be able to view the voltage measured thanks to the CBA WinŠ software.
Designed to work in very noisy environments, it can detect voltages starting at 50 Volts DC.
It will allow you to quickly and easily visualize the voltages found in the control cabinets of your circuit breakers.
Connected to one of the contact inputs of your CBA 32P, you will be able to view the voltage measured thanks to the CBA WinŠ software.
Designed to work in very noisy environments, it can detect voltages starting at 50 Volts DC.
Main advantages
- Allows viewing of DC voltages up to 300 VDC.
- Easy set-up.
- Sturdy and reliable.
- Fit into any tight spaces.
Technical description
- Input voltage: 0 to 300 VDC Max.
- Polarized output.
- Response time :
Turn on : 5µs.
Turn off : 40µs. - No external power required.
- Module opto-isolated.
- Size : 3.9" x 2.3" x 1"
Commercial references
Product reference : ZVD-DC-300-Contact
 <font face="Verdana, Arial, Helvetica, sans-serif" size="2">DC Voltage Detector ZVD-DC-300-Contact</font> |
* Specifications and appearance may change without notice
